YJC-550-OD09-A

i-culed 55” IP66 Outdoor Display

Key Features
  • Resolution3840x2160
  • Viewing Angle178°
  • Brightness3000 cd/m²
  • Contrast Ratio1200:1
  • Screen Size55"

This product is currently out of stock and unavailable.

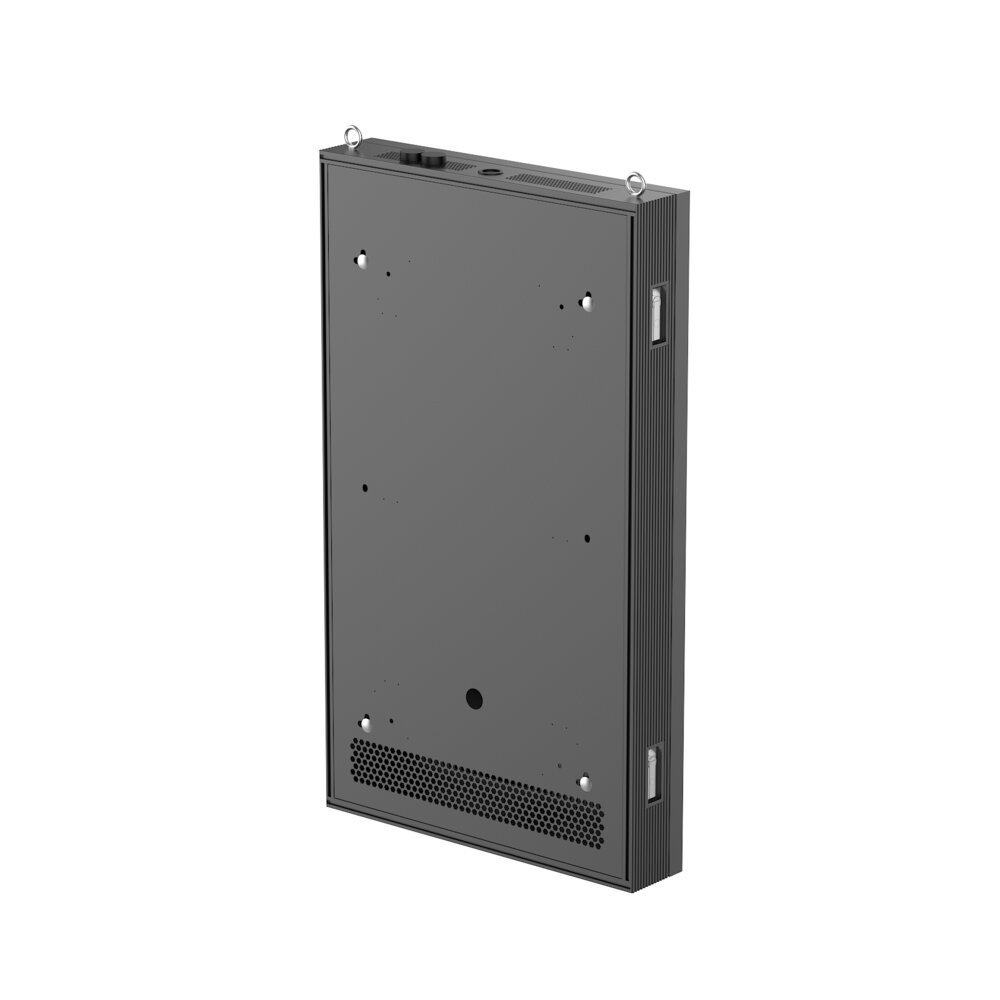

i-culed 55” Outdoor IP66 Display

A professional-grade outdoor IP66 display, featuring a fully enclosed waterproof design and a high-brightness commercial-grade LCD panel. The entire unit is dustproof, waterproof, and sunproof, ensuring stable operation in all weather conditions, making it an ideal choice for outdoor advertising displays.

Landscape & portrait
Both landscape and portrait orientations are possible, providing you with endless creative and functional possibilities to fulfil your commercial or informative goals.

178° Wide viewing angle
The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view outdoor IP66 display.

Smart Brightness Sensor
The display automatically adjusts its brightness based on ambient light conditions. This feature significantly reduces power consumption and extends the monitor’s lifespan.

i-culed 55” Outdoor IP66 Display

24/7 operation
Built using commercial grade LCD panel &LED Backlights, these displays can be in constant 24/7 use for over 50,000 hours.

3000 nits
With 3000 nits maximum brightness, the panels are well equipped to make your content vividly stand out in any location.

Visible With Polarized Sunglasses
3,000 nits LCD to give you a clear image, even in direct sunlight. Enables clear visibility even when the viewer is wearing polarized sunglasses.

Specifications

General

  • Model YJC-550-OD09-A
  • Screen Size 55"
  • Screen Active Area 1210(H)×680.8(W)mm
  • Resolution UHD(3840×2160)
  • Aspect Ratio 16:9
  • Brightness(nits) 3,000 nits
  • Contrast Ratio 1200:1
  • Viewing Angle(H/V) 178°/178°
  • Backlight Life Cycle 50,000 Hrs
  • Operation Hours 24/7
  • Response Time 6ms
  • Screen Orientation Portrait or Landscape
  • Touch Optional

System

  • OS Android 11
  • CPU RK3568, Quad-core 2.0GHz
  • GPU The Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1.
  • DDR DDR 2GB
  • ROM 32GB EMMC
  • Language English/Multilingual

Connectivity

  • Input USB x2, HDMI IN x1, Ethernet RJ45 x1

Network connection

  • Wifi or LAN Yes
  • 3G/4G connection Optional

Speaker

  • Build in speaker Yes
  • Bluetooth Speaker Support Yes

Thermal management

  • Smart Backlight Control Yes
  • Smart Temperature Control Yes
  • Smart Fans Control Yes
  • Overheating protection Yes

Physical

  • IP rating IP66
  • Glass Yes
  • Shell Aluminum
  • Standard Color Black
  • Bezel width 26mm
  • Dimensions 1262(H)×732.8(W)×86(D) mm
  • Net Weight 37 kg
  • Packing Dimensions(W×H×D) 1470(W)×1030H)×270(D) mm
  • VESA 400 x 400mm

Operations

  • Working environment Outdoor
  • Auto Brightness control Light sensor
  • Operation Temperature -45℃ to 65℃
  • Operation Humidity 10% to 80%
  • Storage Temperature -50℃ to70℃
  • Storage Humidity 10% to 80%

What’s in the box

  • Accessories Power cable x 1
  • RJ45 cable x 1
  • Remote control x 1
  • HDMI cable x 1
  • User Manual (Electronic Version)

Power

  • Power Supply AC 100~240V,50/60Hz
  • Power Type Built-In Power
  • Power Consumption 230W(Max.)
